Friday, 5 January 2018

Determine live load bending moment for IRC AA-Track load for BRIDGE by PARAG PAL

Following are the step wise calculation of the live load bending moment for IRC AA-track load for BRIDGE design.

 Different types of the IRC loading.

DO NOT COPY THIS NOTES, ORIGNAL NOTES BELONGS TO Mr . PARAG KAMLAKAR PAL.www.civilnotess.com

STEP NO 1: Understand the loading and spacing of the AA-TRACK LOAD of 700KN.
DO NOT COPY THIS NOTES, ORIGNAL NOTES BELONGS TO Mr . PARAG KAMLAKAR PAL.www.civilnotess.com




STEP NO 2: Given data for the numerical.
DO NOT COPY THIS NOTES, ORIGNAL NOTES BELONGS TO Mr . PARAG KAMLAKAR PAL.www.civilnotess.com


STEP NO 3: Determine effective depth and effective span for bridge.
DO NOT COPY THIS NOTES, ORIGNAL NOTES BELONGS TO Mr . PARAG KAMLAKAR PAL.www.civilnotess.com

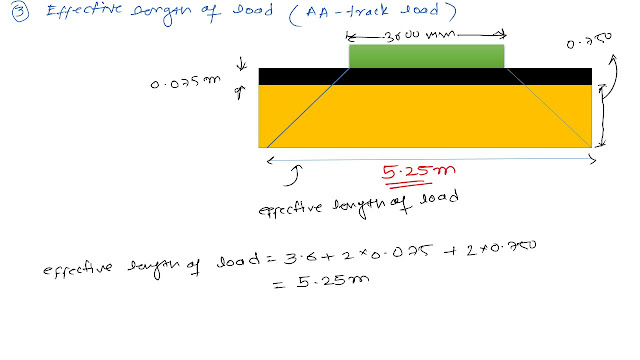

STEP NO 4: Determine effective length of the load.
DO NOT COPY THIS NOTES, ORIGNAL NOTES BELONGS TO Mr . PARAG KAMLAKAR PAL.www.civilnotess.com


STEP NO 5: Determine effective width of the load.
DO NOT COPY THIS NOTES, ORIGNAL NOTES BELONGS TO Mr . PARAG KAMLAKAR PAL.www.civilnotess.com


STEP NO 6: Determine total effective width of the load.

DO NOT COPY THIS NOTES, ORIGNAL NOTES BELONGS TO Mr . PARAG KAMLAKAR PAL.www.civilnotess.com

STEP NO 7: Determine the dispersion area.

DO NOT COPY THIS NOTES, ORIGNAL NOTES BELONGS TO Mr . PARAG KAMLAKAR PAL.www.civilnotess.com

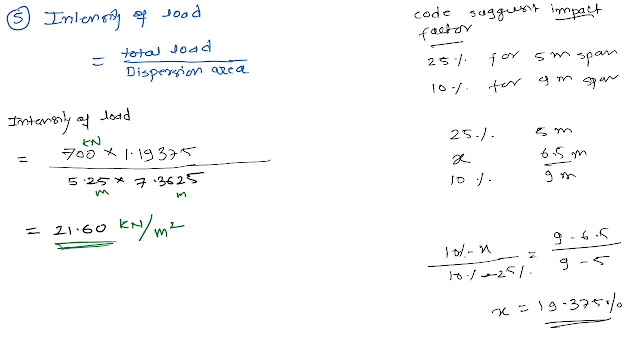

STEP NO 8: Determine intensity of load.
DO NOT COPY THIS NOTES, ORIGNAL NOTES BELONGS TO Mr . PARAG KAMLAKAR PAL.www.civilnotess.com


STEP NO 9: Determine MAXIMUM BENDING MOMENT.

DO NOT COPY THIS NOTES, ORIGNAL NOTES BELONGS TO Mr . PARAG KAMLAKAR PAL.www.civilnotess.com



SAVE GIRL CHILD AND EDUCATE THEM.

Above notes do not copy and use on different sites or apps, if it  found that we will take action against them.....

Written by : Mr PARAG KAMLAKAR PAL.
